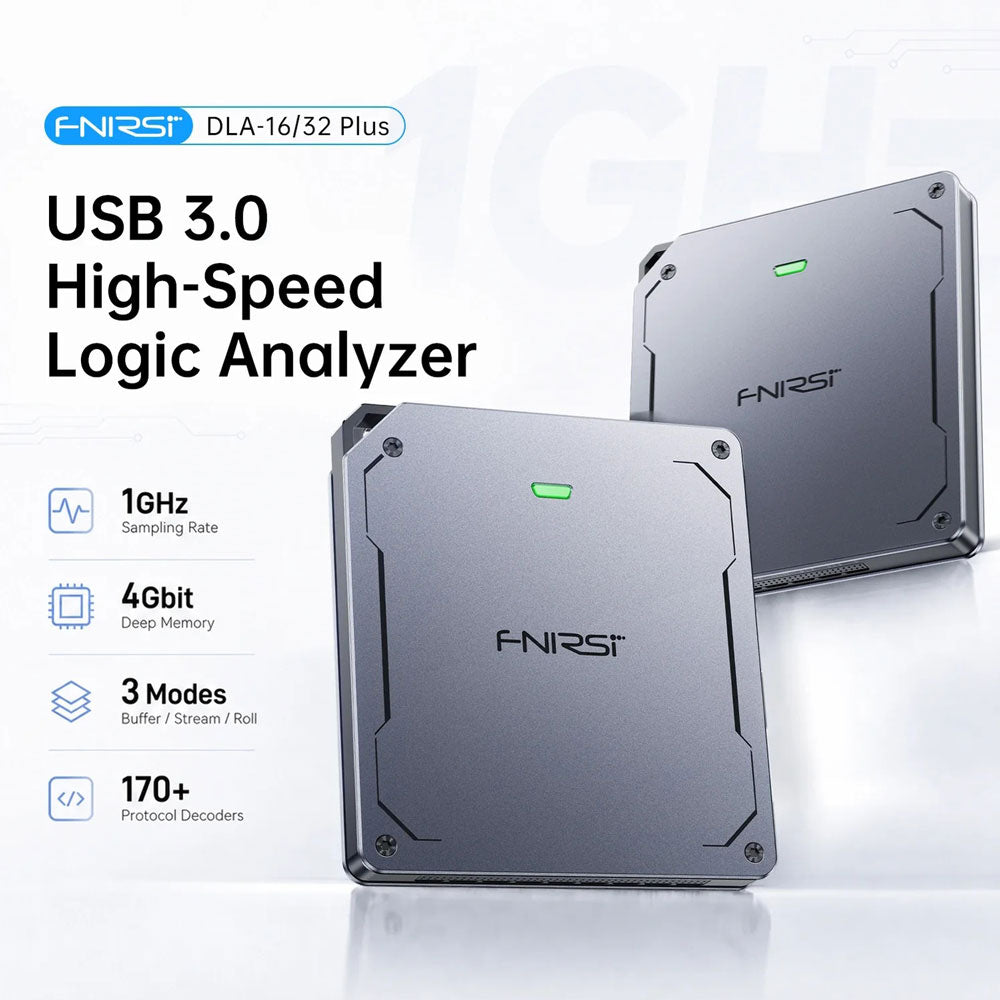

FNIRSI DLA-16/32 Plus Logic Analyzer (16/32 Channels)

Description

The FNIRSI DLA Series combines high-performance USB 3.0 logic analysis with flexible multi-channel signal capture for debugging and analyzing digital circuits and embedded systems. The series is available in two versions: the DLA-16 Plus with 16 digital channels and the DLA-32 Plus with 32 digital channels.

Both models offer sampling rates of up to 1 GSa/s, 4 Gbit of onboard memory, and support for 120+ protocol decoders. With Buffer, Stream, and Roll acquisition modes, they are suitable for both high-speed signal analysis and long-term monitoring.

Choose the DLA-16 Plus for higher sampling rates when using all channels, or the DLA-32 Plus when you need more channels and advanced serial and parallel triggering.

Features

  • Available with 16 or 32 digital input channels

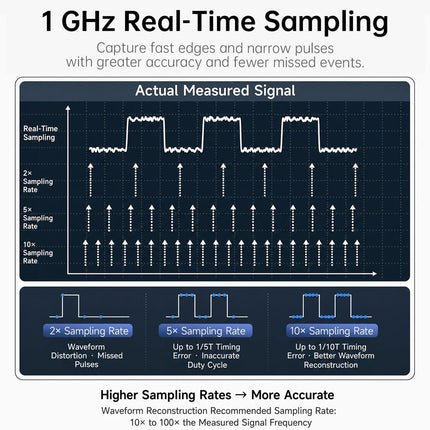

  • Up to 1 GSa/s sampling rate
  • DLA-16 Plus: up to 500 MSa/s with all 16 channels
  • DLA-32 Plus: up to 250 MSa/s with all 32 channels
  • 4 Gbit onboard memory

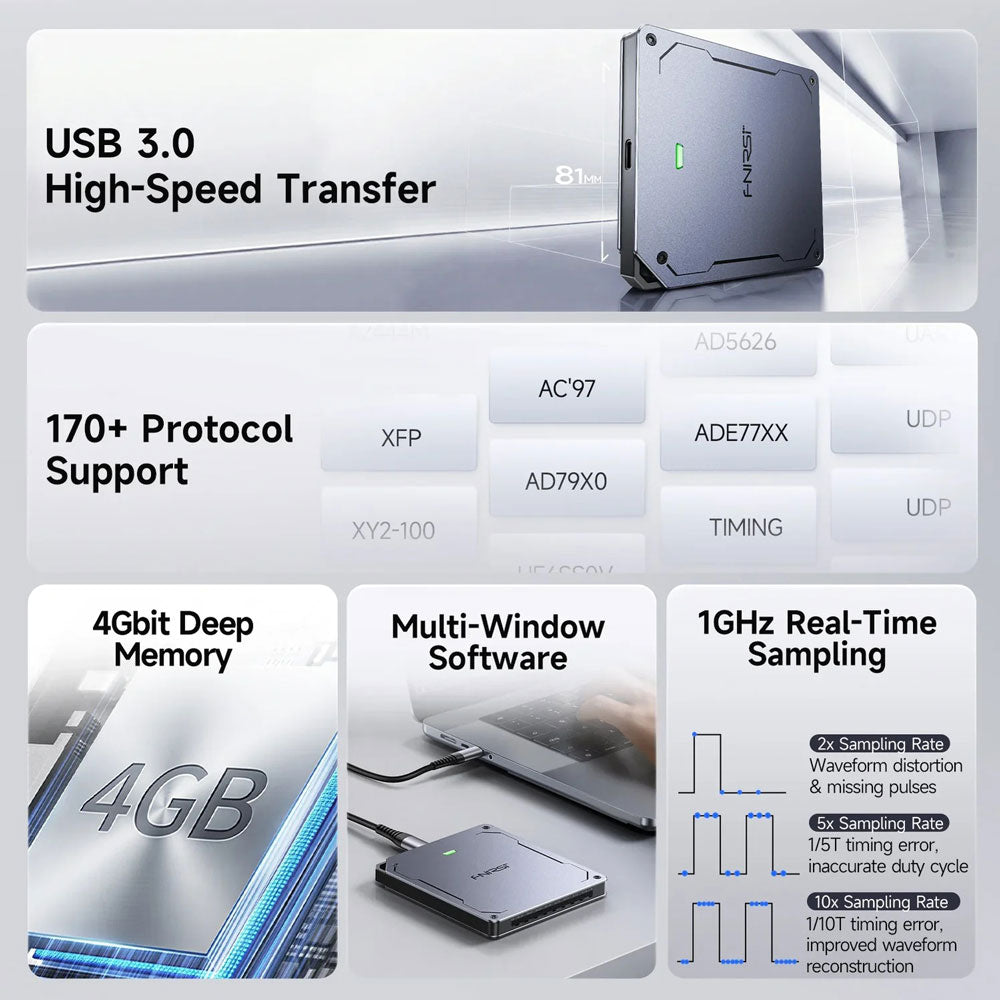

  • High-speed USB 3.0 interface

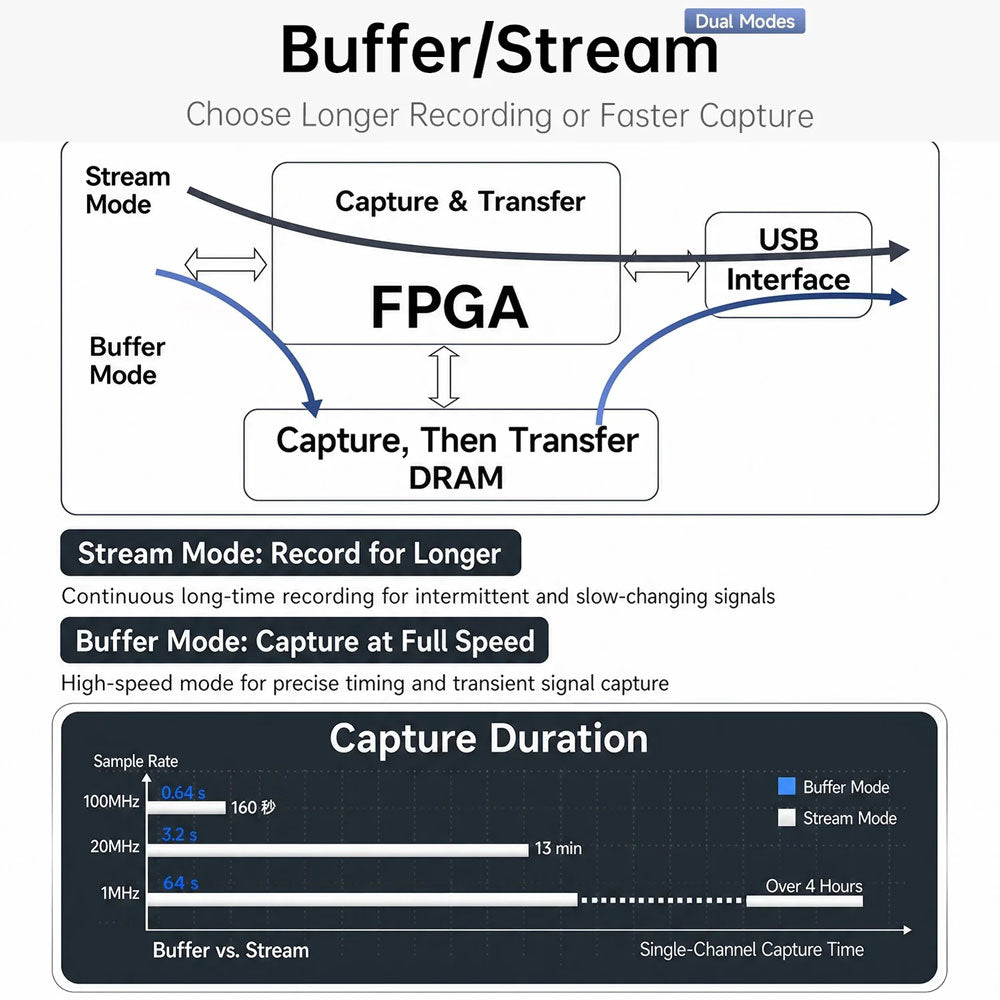

  • Acquisition modes: Buffer, Stream, and Roll
  • Support for 120+ protocol decoders
  • Advanced triggering options
  • 4 PWM outputs with 1 Hz–20 MHz frequency range
  • CSV and BIN data export

Specifications

DLA-16 Plus DLA-32 Plus
Digital Channels 16 32
Max. Sampling Rate 1 GSa/s
Sampling Rate (1 Channel) 1 GSa/s
Sampling Rate (8 Channels) 1 GSa/s
Max. Buffer Sampling 16 CH @ 500 MSa/s 32 CH @ 250 MSa/s
Max. Stream Sampling 16 CH @ 125 MSa/s 32 CH @ 50 MSa/s
Hardware Memory 4 Gbit
Interface USB 3.0 / USB-C
Max. USB Transfer Rate 5 Gbit/s
Acquisition Modes Buffer / Stream / Roll
Protocol Decoders 120+
Custom Protocol Support Yes
Trigger Modes Rising Edge, Falling Edge, High, Low, Any Edge
Advanced Trigger Standard Triggering Serial and Parallel
Parallel Trigger Stages – Up to 16
PWM Outputs 4
PWM Output Voltage 3.3 V
PWM Frequency 1 Hz–20 MHz
Data Export CSV, BIN
Dimensions 90 x 81 x 11.5 mm

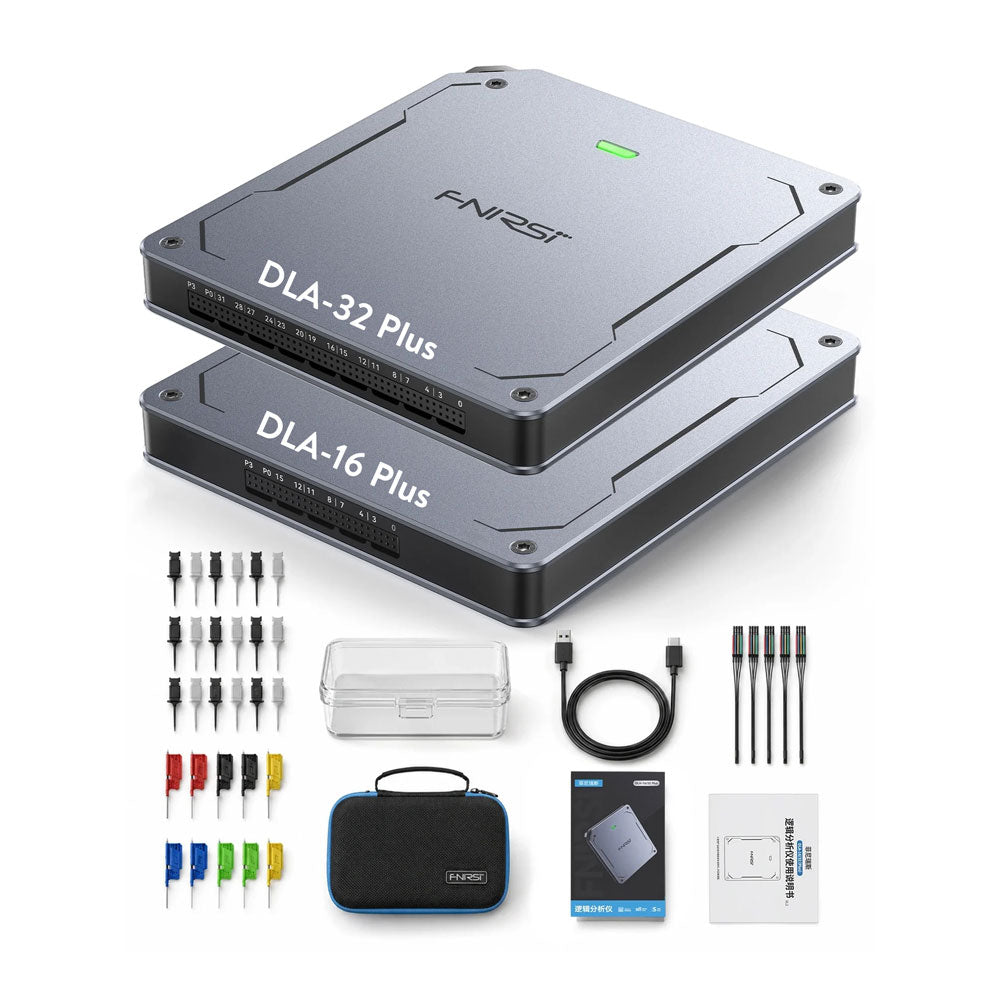

Included

  • 1x FNIRSI DLA-16/32 Plus Logic Analyzer
  • 4 Sets x 5 Shielded Cables
  • 18x Mini IC Test Hooks (High Configuration Version)
  • 1x USB 3.0 Data Cable
  • 10x IC Test Hooks
  • 1x Transparent Storage Case for Test Hooks
  • 1x Storage Bag
  • 1x Manual
